Custom based solutions for specific applications. With experience since 1980 in Laser market makes us the perfect choice for beeing your partner integrator. If you need to find a solution form zero, just contact us and our R&D department will provide the answer to your needs. Lasing is involved in EU funded projects for machine development as LASHARE and APPOLO from FP7 program.

LS-CUSTOM EXAMPLES

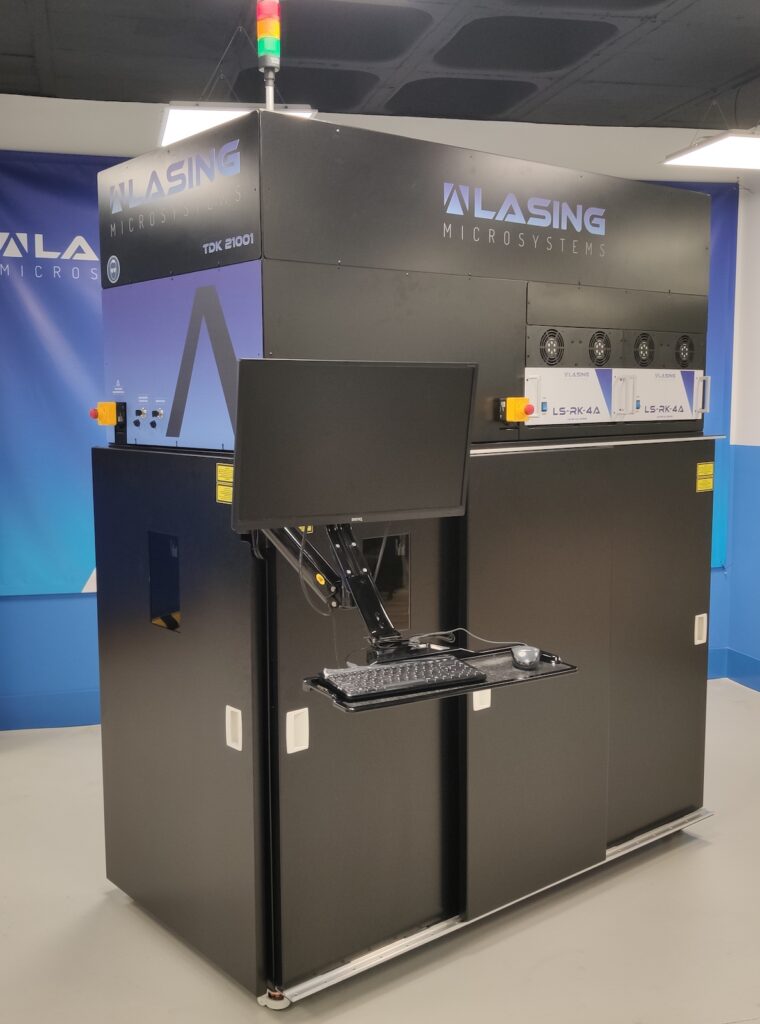

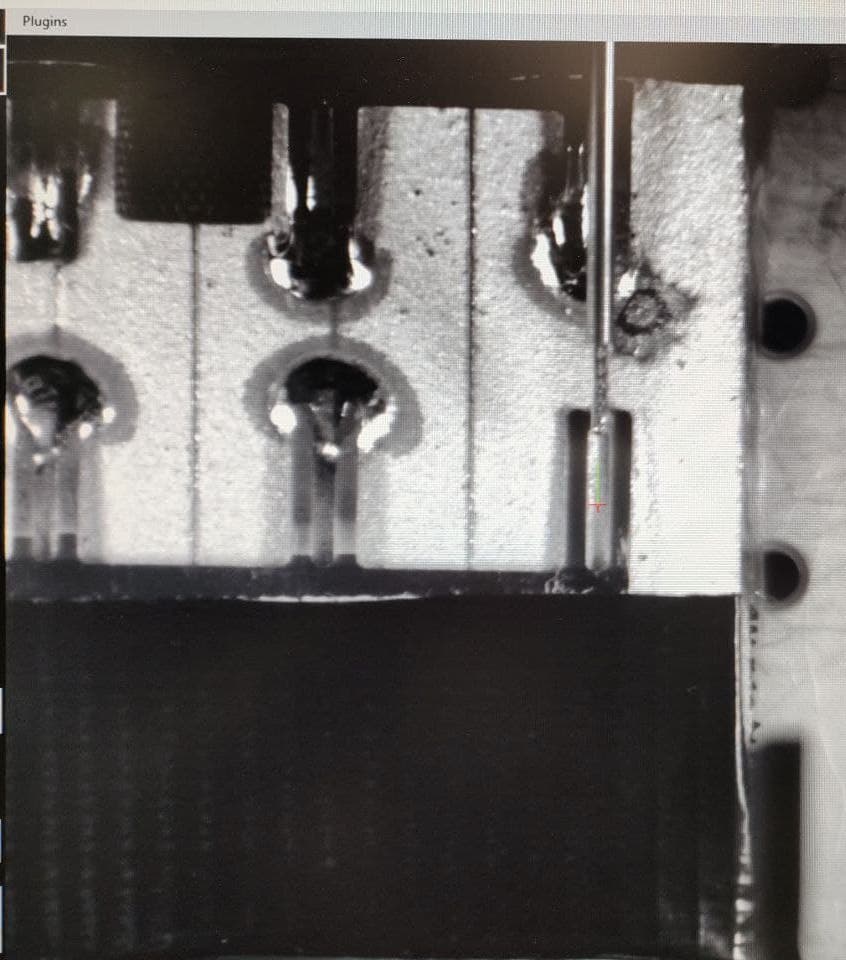

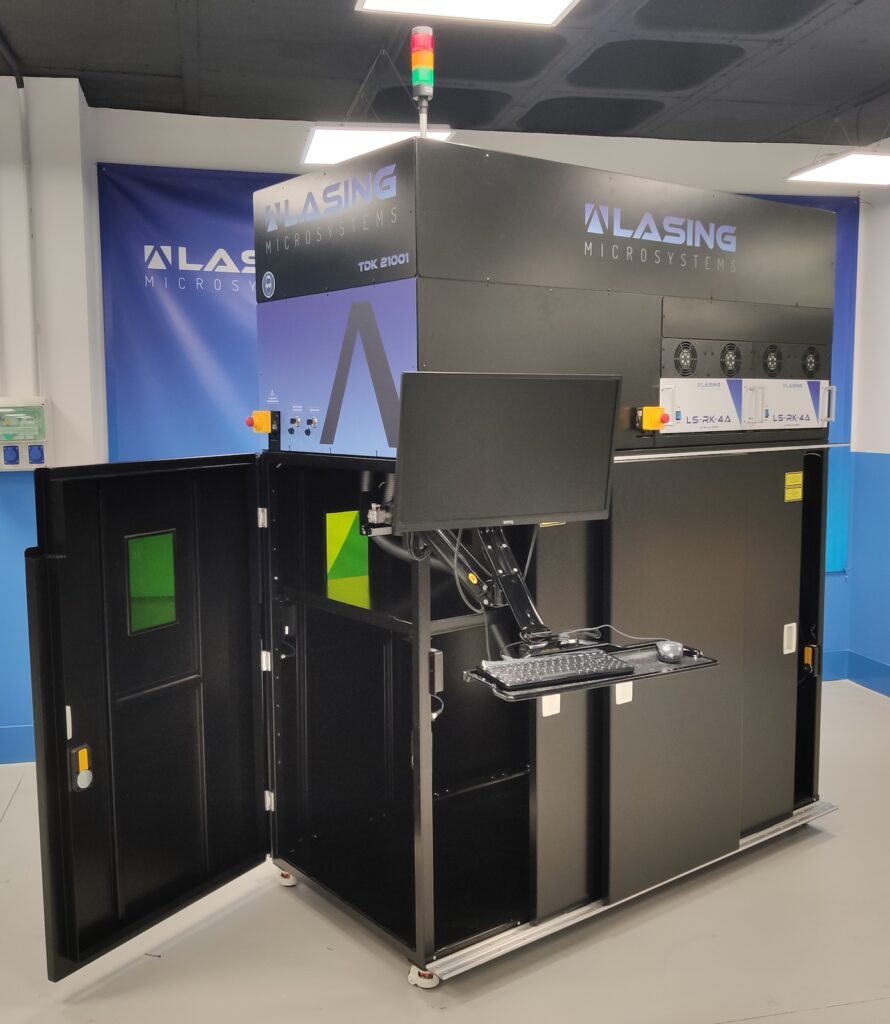

IR Remote Soldering Laser System

  • Galvo processing (16 bits resolution)
  • Direct Galvo area up to 300 mm x 300 mm TTL Vision
  • CW 500 W laser
  • XYZ motorized table with 1 micron resolution Intuitive and easy to use software.
  • Class 1 CE Marked.

Photovoltaic R&D Laser System

  • 2 W 532 nm nanosecond laser
  • 15W continuous 532 nm laser
  • High precision Galvo processing
  • High precision XYZ stages
  • High resolution parallel Vision
  • Spot-size: 10 to 30 μm
  • Custom holders for complex vision alignment
  • Custom software
  • Class 1 CE Marked.

Diamond Laser Processing Machine

  • 20W 532nm Q-Switched ns laser
  • XYZ stages with 1 μm resolution
  • Galvo-head for fast 2.5D processing with 20 mm x 20 mm for cutting and high-volume engraving
  • 5X processing objective for high resolution engraving
  • Custom software
  • Class 1 CE Marked.

ITO Scribe Laser System

  • 2W 532 nm Q-Switched ns laser
  • 1W 355 nm Q-Switched ns laser
  • 1W 266 nm Q-Switched ns laser
  • XYZ stages with 50 nm resolution
  • Custom laser head
  • TTL vision and co-lineal autofocus laser
  • Spot-size: <1 μm
  • Custom software Class 1
  • CE Marked.
